Description

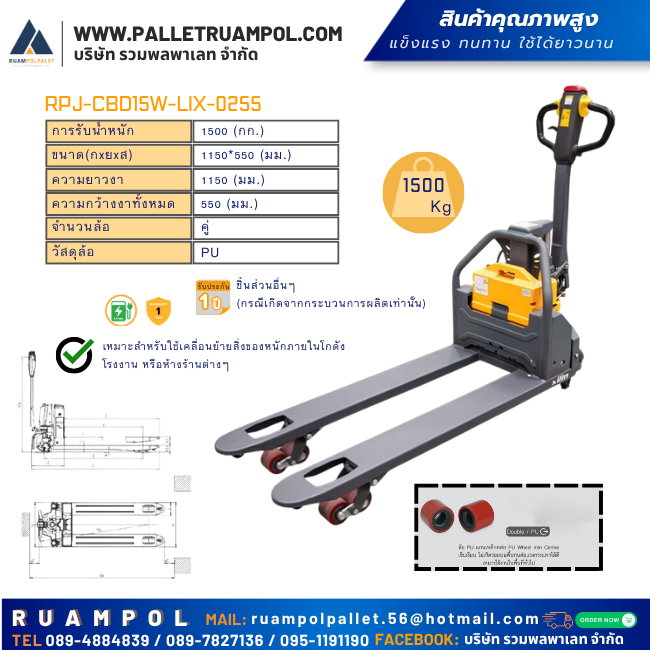

| รุ่น | RPJ-CBD15W-LiX-0255 |
|---|---|
| Operator Type | Pedestrian |
| Type of Fork | Fixed Forks |
| Pallet Compatibility | Fixed Forks – for Euro Pallet (ใช้กับพาเลทหน้าแคบ) |
| Load Capacity (kg) | 1500 |
| Distance Between Fork Arms b5 (mm) | 550 |
| Load Centre Distance C (mm) | 600 |
| Lifting Height h3 (mm) | 110 |
| Lowered Height of Fork h13 (mm) | 80 |
| Max Height of Fork (mm) | 190 |
| Overall Length l1 (mm) | 1651 |
| Overall Width b1 (mm) | 550 |
| Fork Dimension s/e/l (mm) | 45/160/1150 |
| Turning Radius Wa (mm) | 1424 |
| Travel Speed, Laden / Unladen (km/h) | 4.0/4.5 |
